Indirect electric boiling pan with electric tilting – PIAR-EE

Tilting boiling pans are an evolution of fixed boiling pans: they share the same construction features, keeping the water jacket formed by an outer wall surrounding the cooking tank. Distilled water is fed into the water jacket and, once heated, produces steam, which in turn transfers heat to the food being cooked, a very gentle treatment thanks to its distribution across the entire surface of the tank.

They differ from fixed boiling pans in the ability to tilt the tank, so that all the product can be recovered at the end of cooking.

A wide range lets you choose the right model for every need in terms of productivity, space and consumption.

The series includes models from 110 up to 500 litres, with electric, gas or steam heating.

BARATTA “tilting” boiling pans stand out for their high sturdiness and reliability, ease of use and cleaning.

Contacts

+39 0584 941766
[email protected]

Service

Guaranteed service and original spare parts

Delivery times

Delivery times guaranteed by contract

Features and operation

Sturdy construction
Indirect heating via armoured heating elements with water jacket
Phase control relay with pilot lamp
Water jacket safety valve with pressure gauge
Electronic controls with microprocessor
Power adjustable to 7 levels
Safety thermostat
AISI 304 stainless steel construction
AISI 304/316 stainless steel tank with radiused bottom
Very high thermal efficiency
Indirect cooking allows various types of product to be cooked
Tank tilting with gear motor
Maximum hygiene, easy cleaning
The PIAR-EE series offers capacities from 110 to 500 L

The lid is made of AISI 304 stainless steel. A special device balances its weight to make opening easier. Models with capacities of 330, 400 and 500 litres have a motorized lid with two-hand safety controls

The maximum and minimum valves regulate the level of distilled water inside the water jacket. The distilled water level must be checked periodically for the boiling pan to work correctly. A device for automatically filling the water jacket can also be installed (optional).

The pressure in the water jacket is regulated by a special safety device complete with a pressure gauge. The maximum pressure is 0.45 bar

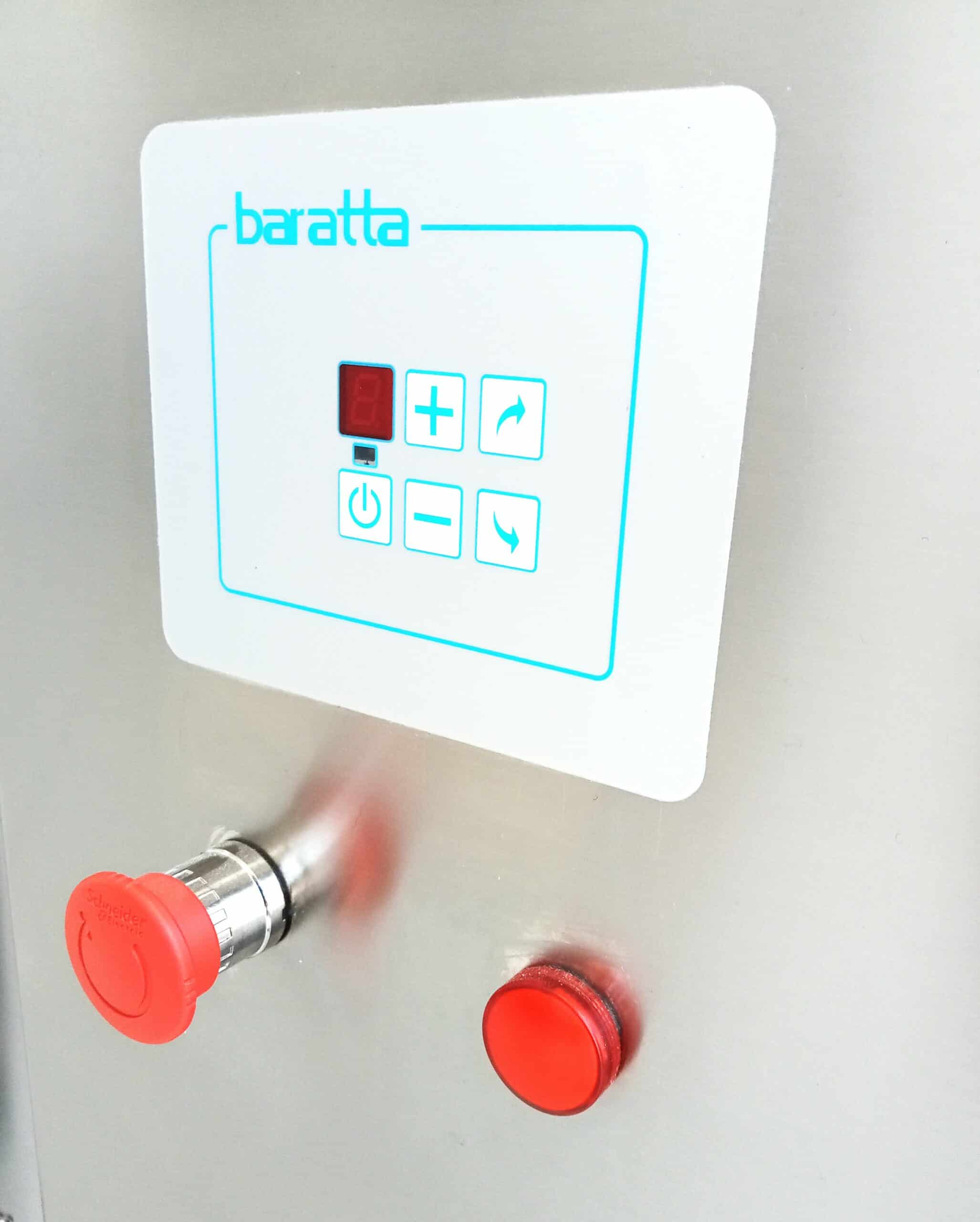

The tilting boiling pans are equipped with electronic controls for regulating the temperature and tilting the tank to recover the product at the end of cooking.

The BARATTA tilting boiling pan is the essential tool for optimising work in a modern kitchen: easy to use, efficient and economical.

The structure of the BARATTA boiling pan ensures high productivity and considerable savings on labour and consumption.

The PIAR-EE range is among the most complete on the market, with capacities from 110 up to 500 litres, letting you choose the model best suited to every need in terms of space and productivity.
