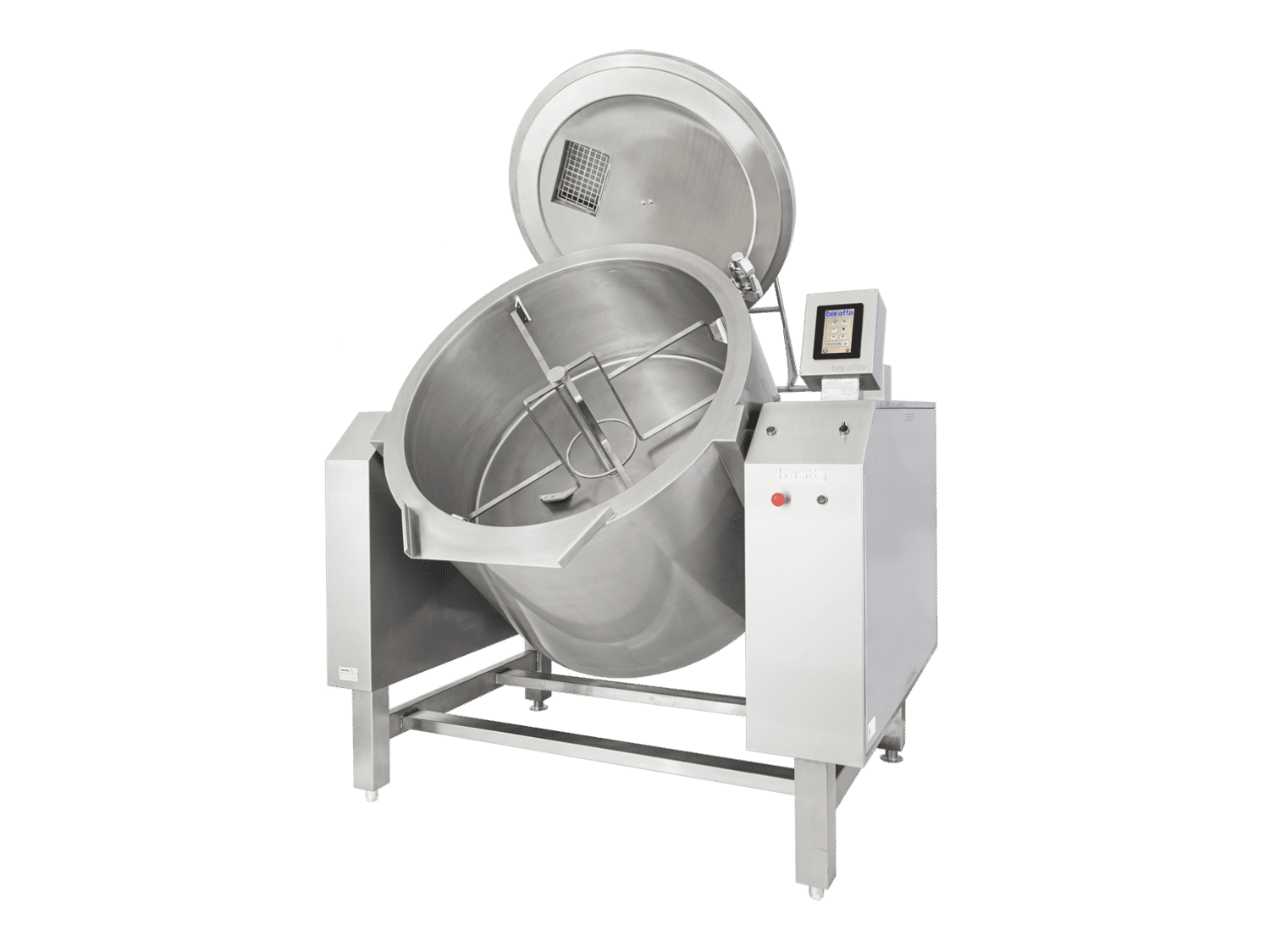

Electric tilting bratt pan with mixing – BEMT

BARATTA bratt pans in the BEMT series are designed and built for intensive use. The materials used are carefully selected to last over time; the thickness of the sheet metal and the quality of the components ensure maximum functionality of the machine. The control of the tank bottom and core product temperatures is handled by precise and reliable devices.

The management program makes the operator’s work easy: simply recall the stored recipe with a single touch and start the machine, which will complete the cooking process with no further intervention.

The greatest care is taken in the processing and finishing of the surfaces to make the machines easy to use and clean, as well as giving them a pleasing aesthetic appeal.

The BEMT series produced by BARATTA includes capacities from 80 up to 450 litres; a wide range lets you choose the right model for every need in terms of productivity, space and consumption.

BARATTA bratt pans stand out for their high sturdiness, reliability and ease of use.

Contacts

+39 0584 941766
[email protected]

Service

Guaranteed service and original spare parts

Delivery times

Delivery times guaranteed by contract

Features and operation

Sturdy construction
Direct heating via armoured heating elements
Phase control relay with pilot lamp
Digital control panel with touch screen
AISI 304 stainless steel construction
Tank made entirely of AISI 316 stainless steel with a thick bottom, allowing acidic foods to be cooked too
Electronic control for tank bottom temperature regulation 50°C – 300°C with safety function
Electronic control 50°C – 220°C with core probe
Mixing arm with adjustable speed and reversible direction of rotation
Hundreds of programming combinations
Up to 100 storable recipes
Cooking with mixing allows various types of product to be processed without sticking to the bottom
Automatic operation
Electric tilting with gear motor
The BEMT series offers models with capacities from 80 to 450 litres

Simple and intuitive, the touch screen panel is easy to program and stores all the various stages of your recipes. Just recall them with a single touch to find the machine ready to carry out each preset command precisely, replicating operations accurately and giving consistency over time to the product being cooked.

The mixing arm is the key strength of the BEMT bratt pans. Its action makes the continuous presence of the operator unnecessary during cooking, keeping the product moving to prevent it sticking to the bottom and stirring it continuously.

It is always advisable to have side scrapers fitted on the mixer, which prevent greasy materials from sticking to the vertical walls, where they could burn or char, giving the food a bad taste and making cleaning more difficult.

A special device continuously detects the temperature of the product being cooked, regulating its level. The electronic control unit manages heating according to the set parameters, ensuring even cooking through the various stages. A second probe measures the tank bottom temperature, allowing the heat to be adjusted according to the type of food being cooked.

The 300 and 450 litre bratt pans are supplied with a motorized lid with two-hand safety control

All BARATTA products with a three-phase power supply are fitted with a control device that stops the machine in the event of phase inversion and activates a warning light.

The bratt pans can be supplied with a range of optional features that make them easier to use; for example, the opening in the lid allows ingredients to be added during cooking, or the inside of the tank and the correct mixer speed to be checked. In some cases it can be useful to fit a DIN50 drain cock

BARATTA bratt pans in the BEMT series offer all the advantages of a machine built without compromising on materials.

The features built into this series give the BEMT bratt pans complete automation, making the operator’s presence unnecessary once cooking has started.

The structure of the BARATTA electronic bratt pan ensures high productivity and considerable savings on labour and consumption.

The range is among the most complete on the market, made up of 6 models with capacities from 80 up to 450 litres, letting you choose the model best suited to every need in terms of space and productivity.
