Indirect gas heating tilting boiling pan with mixing – PGRM

Indirect gas tilting boiling pan with mixing - PGRM

Indirect Gas heating tilting Boiling Pan with Mixing – PGRM

Professional boiling pans with mixing can operate without the need of intervention by the operator. Once the recipe programming is set via the control panel with electromechanical components, the appliance autonomously and precisely completes the entire cooking cycle, signaling the end of the process with an audible alert.

Like any boiling pan, the PGRM models also feature a construction design with a water jacket surrounding the cooking vessel. Distilled water is introduced into this jacket, and once heated, it produces steam, which in turn transfers heat gently to the cooking product, due to its even distribution across the entire surface of the pan.

The mixing arm, made of AISI 316 stainless steel, is equipped with scrapers on the bottom and sides of the pan to ensure thorough mixing.

The PGRM indirect gas heating tilting boiling pans with mixing, manufactured by Baratta S.r.l., range from 100 to 500 liters in capacity and are known for their exceptional robustness and reliability, as well as their ease of use and cleaning.

Why choose the Baratta PGRM Indirect Gas heating tilting Boiling Pan with Mixing

Baratta professional boiling pans are ideal for cooking food in water. Their design ensures a delicate treatment of food, making them perfect for preparing soups, broths, sauces, rice, vegetables, meats, and dairy-based products. Additionally, they can be used for boiling and pasteurizing processes.

The versatility of the tilting boiling pan in producing a wide range of products makes it an essential tool in industrial kitchens aiming for flawless results while keeping energy consumption in check.

Support

Guaranteed Assistance and Original Spare Parts

Delivery Times

Guaranteed by contract

Features and Operation

  • Heavy duty construction
  • Indirect heating by gas burner with water jacket
  • Phase control relay with pilot lamp
  • Control panel with electromechanical components
  • Electronic bottom temperature control with safety level
  • Control of product temperature during cooking (core probe)
  • Cavity safety valve with pressure gauge – Pressure 0.45 Bar
  • AISI 304 stainless steel construction
  • AISI 316 stainless steel tank with rayed bottom
  • Very high thermal efficiency
  • Automatic cavity water loading
  • Mixing with adjustable speed and possibility of reversal
  • Mixing arms with scrapers on the bottom and walls of the tank
  • Indirect cooking with mixing makes it possible to cook various types of products without them sticking to the bottom and without user intervention
  • Tilting the tub with gear motor
  • Maximum hygiene, easy cleaning
  • The PGRM series has capacities of 100 and 500 litres

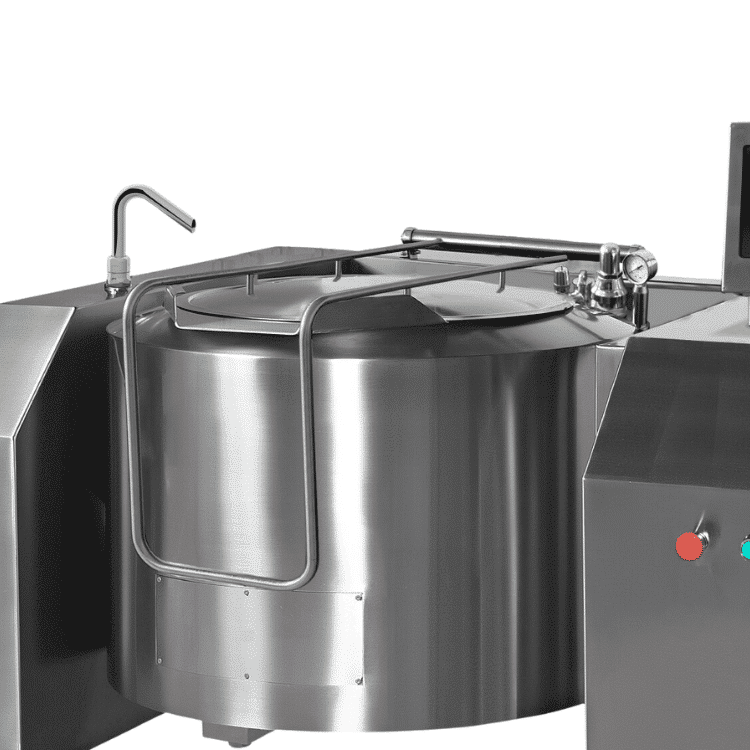

The lid is made of AISI 304 stainless steel. A special device balances the weight and facilitates opening. Models with capacities of 330, 400 and 500 litres feature motorised lids with two-hand safety controls
The PGRM series is built with an electromechanical component panel. Precise and reliable, easy to replace in the event of a failure, they allow for worry-free continuity of work.
In order to be able to handle acidic products, the components in contact with the product being cooked are made of AISI 316 stainless steel. The PGRM series is supplied with Teflon food grade scrapers on the bottom and walls of the tank. The core probe regulates the correct temperature for each type of food during cooking
The pressure in the water jacket is regulated by a special safety device complete with pressure gauge. The maximum pressure is 0.45 bar
On request, we can install a quick drain valve. The DIN50 connection allows the pot to be connected to a container, a packaging machine or a transfer pump.

Advantages of the Indirect Gas heating tilting Boiling Pan with Mixing – PGRM

Baratta professional boiling pan is an essential tool for optimizing work in a modern kitchen: easy to use, efficient, and cost-effective.

The PGRM industrial boiling pans offer all the advantages of fully independent machines. They are built with AISI 304 stainless steel, featuring a very robust structure that ensures both functionality and longevity. The vessel has a bottom made of AISI 316 stainless steel to resist salt corrosion. The rounded bottom and unique shape make draining and cleaning easy. An effective insulation layer minimizes heat loss, optimizing energy consumption and performance.

Once the recipe programming is set via the control panel with electromechanical components, the boiling pans autonomously complete the entire cooking cycle without any operator intervention.

The ability to adjust the bottom temperature, the core temperature of the product, the mixing speed, and the cooking time provides the Baratta industrial boiling pan with great flexibility, making it indispensable in any kitchen, laboratory, or food processing facility, with significant savings in operational costs.

The range is one of the most comprehensive on the market, with capacities ranging from 100 to 500 liters, allowing you to choose the model that best suits any space and productivity requirement.

For more information download the data sheet or contact our sales department
