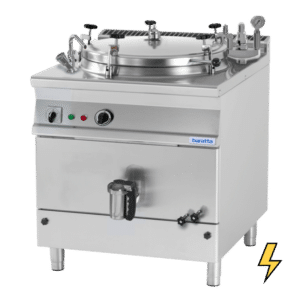

Indirect electric boiling pan with autoclave lid – PIA-EEA

Fixed boiling pans make up BARATTA’s most extensive range, a variety of models that lets you choose the right appliance for every need in terms of productivity, space and consumption.

The distinctive feature of this type of appliance is the water jacket, formed by an outer wall surrounding the cooking tank. Distilled water is fed into the water jacket and, once heated, produces steam, which in turn transfers heat to the food being cooked, a very gentle treatment thanks to its distribution across the entire surface of the tank.

BARATTA’s range of round boiling pans starts from 200 litres up to 600 and stands out for its high sturdiness and reliability, ease of use and cleaning. It comes as standard with a hot/cold water fill tap and a 2” drain cock. Accessories are available to make the work easier.

The autoclave lid, which can be installed across the entire range, produces the same effect as a domestic pressure cooker: it raises the pressure during cooking and consequently increases the temperature. This reduces heat-up times, cooking times and energy consumption.

Contatti

+39 0584 941766
[email protected]

Assistenza

Assistenza garantita e pezzi di ricambio originali

Tempi di consegna

Tempi di consegna garantiti da contratto

Caratteristiche e funzionamento

Sturdy construction
Indirect heating via armoured heating elements with water jacket
Water jacket safety valve with pressure gauge
Autoclave lid, which reduces both heat-up and cooking times
Safety valve on the lid, maximum pressure 0.45 bar
AISI 304 stainless steel construction
AISI 304/316 stainless steel tank with radiused bottom
Very high thermal efficiency
Indirect cooking allows various types of product to be cooked
Maximum hygiene, easy cleaning
Easy to use and maintain
The PIA-EEA series offers capacities from 200 to 600 L
AISI 304 stainless steel baskets on request

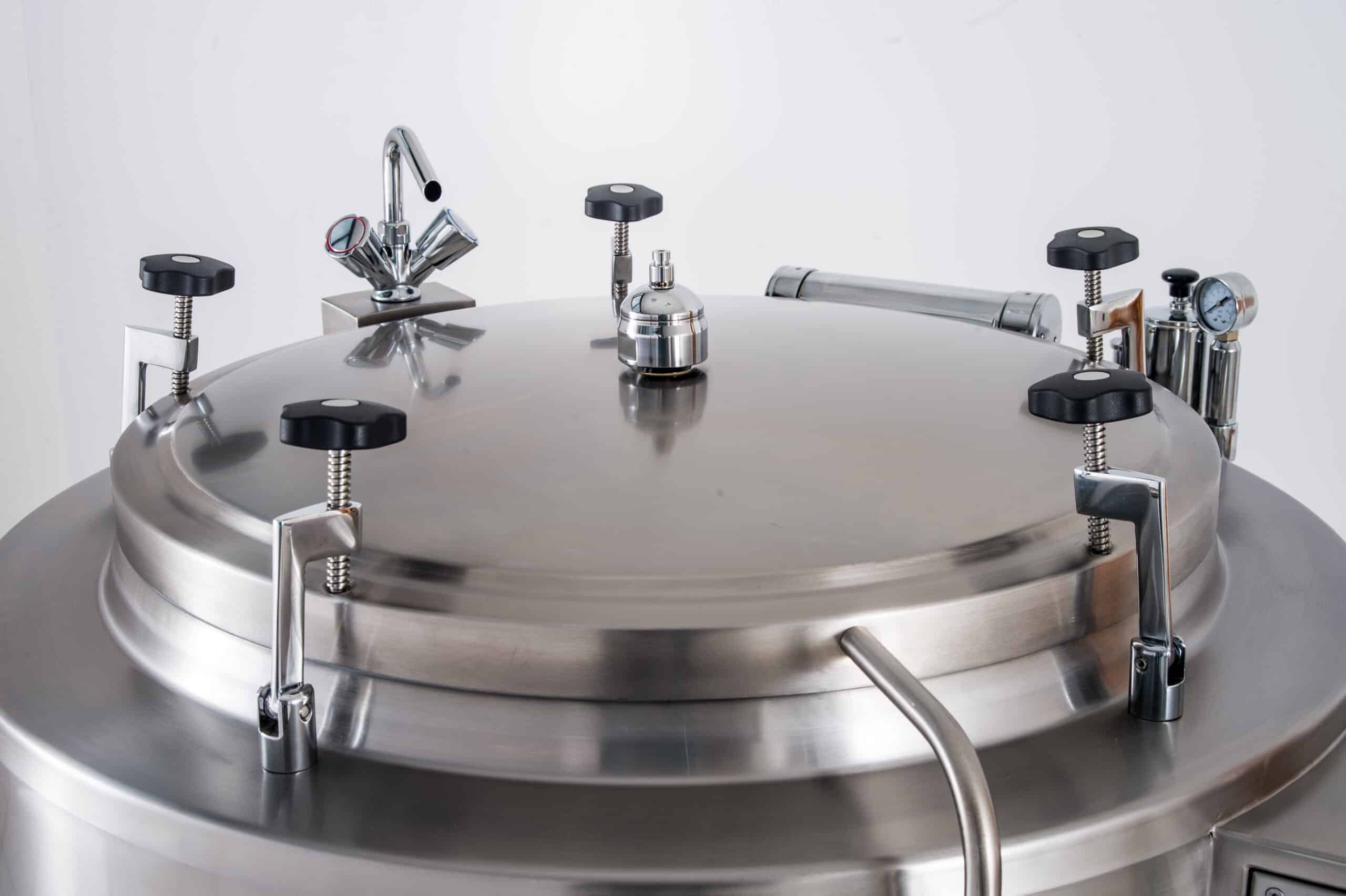

The autoclave lid, which can be installed across the entire range, produces the same effect as a domestic pressure cooker: it raises the pressure during cooking and consequently increases the temperature. This reduces heat-up times, cooking times and energy consumption.

The maximum and minimum taps regulate the level of distilled water inside the water jacket. The distilled water level must be checked periodically for the boiling pan to work correctly. A device for automatically filling the water jacket can also be fitted (optional).

The pressure in the water jacket is regulated by a special safety device complete with a pressure gauge. The maximum pressure is 0.45 bar

At the end of cooking, the product can be drained using the 2” front cock; the heat-resistant grip allows safe use, preventing burns.

On request, we can fit a quick drain cock with a DIN50 connection to link the boiling pan to a container, a packaging machine or a transfer pump

The autoclave lid gives the boiling pan the ability to cook at a pressure of 0.45 bar in the cooking chamber, allowing a temperature higher than boiling point to be reached and, as a result, cooking times and energy consumption are reduced.
The BARATTA autoclave boiling pan is the essential tool for optimising work in a modern kitchen: easy to use, efficient and economical.

BARATTA boiling pans in the PIA-EE series offer all the advantages of machines built without compromising on materials, ensuring high productivity and considerable savings on labour and consumption.

The range is among the most complete on the market, with capacities from 200 up to 600 litres, letting you choose the model best suited to every need in terms of space and productivity.
